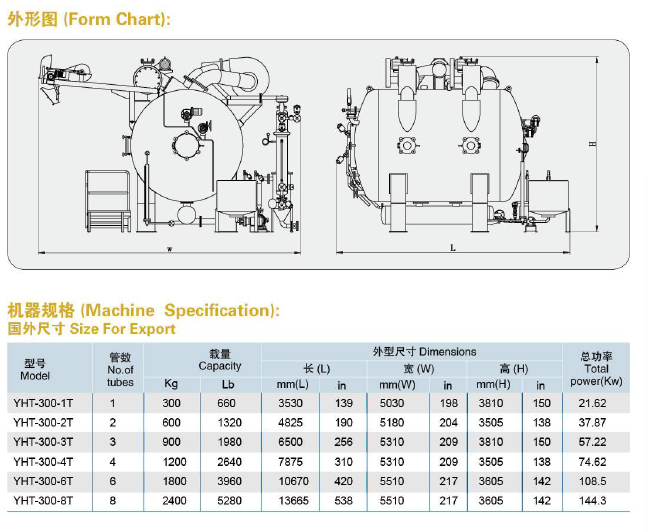

The machine chamber dia.: 2212mm, 300kg/tube, which increase the production and save the energy and labor cost.

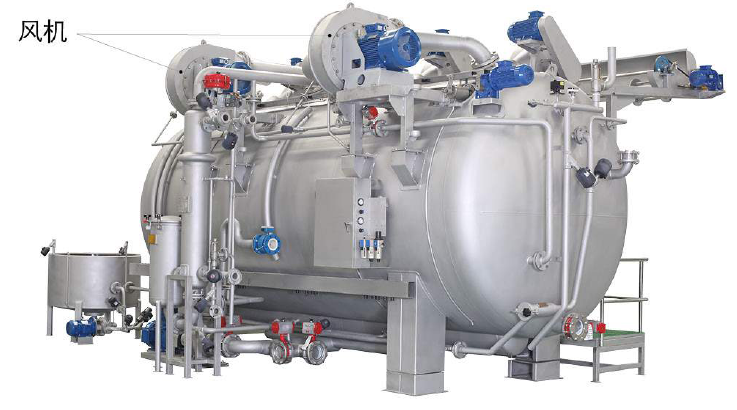

1.    Each two tubes are designed with an independent blower to keep the air volume and wind power of each tube stable and solve the tube difference caused by different air volume problem and improve the fabric quality significantly.
2.    The blower drives the fabric to run, the strong airflow can penetrate the inside of the fabric and better solve the fabric easy curling and easy crease problems.
3.    The dyeing stability is excellent and adopted the front focusing overflow nozzles, which has 8 small nozzles and the sprayed dye liquid is completely onto the fabric in all directions, reducing the differences of the shades and tubes during the dyeing process.
4.    The independent water supply spraying and rinsing system, the fabric rinsing is more efficient with shorter running time and less water consumption.
5.    Automatic adjustable chamber can let the fabric to run and dye neatly.
6.    Compared with the traditional dyeing machine, it saves approx. 50% water and 40% auxiliaries. At the same time, it greatly reduces the cost of sewage treatment and achieve the energy saving.
